Drinking water system UBLINE 600

Direct Flow Drinking Water Purification System “UB LINE 600”

The “UB LINE 600” is a water purification system designed to produce clean drinking water. This system removes inorganic, organic, and microbiological contaminants from the water.

For instance, it filters out mechanical impurities, salts, alkalis, ions, microorganisms, bacteria, etc. The water purification level can reach up to 98%. The system’s primary component is a membrane that completely removes organic substances with a molecular size greater than 0.0001 μm. No chemical reagents or substances are used in the purification process. The system includes multiple purification stages that can be further customized to meet the specific needs of each client.

Equipment Features and Advantages:

• Flow Rate: 1.5 L/min
• High Efficiency
• Attractive Design
• Quality: Made with high-quality materials.
• Compact Size: Easy to place, install, and maintain.
• Quick-Change Cartridges: Simplified operation, allowing clients to easily replace cartridges themselves.

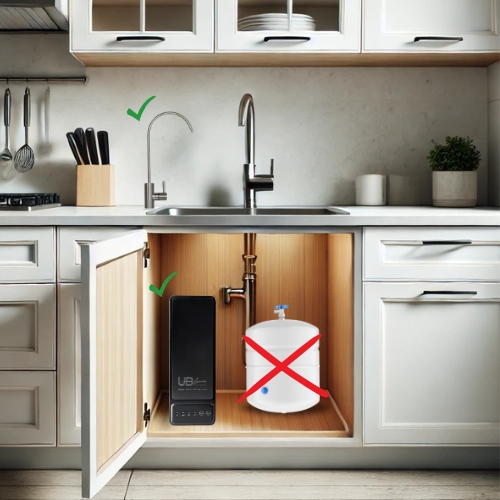

• Tankless Design: Purified water is supplied with a powerful flow.
• Automatic Rinsing: After each use, the system performs a brief rinse, preventing water stagnation and biofilm formation in cartridges, membranes, and pipes.
• Water Economy: Wastewater output is about five times less than standard reverse osmosis systems (clean/wastewater ratio of 1:1).
• 24-Hour Rinsing: If water is unused for over 24 hours, the system initiates a rinse cycle.
• Sterility: No need for cartridge, housing, piping, and tank disinfection.
• Reminder Signals: Notifies once a year for cartridge replacements.
• LED Warning Lights: Alerts for device malfunctions or cartridge replacement needs.

SYSTEM COMPONENTS

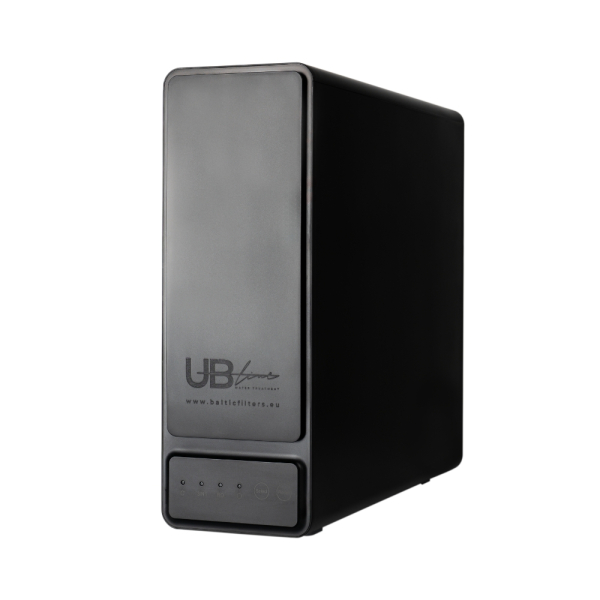

1. “UBLINE 600” Unit
2. Combined Filter “UB LINE 3 in 1”
3. Membrane “UB LINE RO”
4. 24Vdc Pressure Booster Pump (built-in): Provides the necessary pressure to the membrane.
5. Stainless Steel Faucet
6. Adapter: 100-240V, 50/60Hz, 24Vdc.
7. Water Connectors and Tubing

Packing dimensions:
48x36x44 cm
Weight: 13 kg

Operation:

Replaceable Cartridges

1.Combined Filter “UBLINE 3 in 1”: Incorporates several purification stages:

1. First: Mechanical Pre-Filter (removes mechanical particles).
2. Second: Carbon Pre-Filter (removes organic and chemical contaminants).
3. Third: Fine Carbon Post-Filter (removes organic impurities).

Recommended replacement frequency: Once per year.

2. Membrane “UBLINE RO”:
Purifies water from salts, metals, pesticides, microorganisms, bacteria, etc.
Recommended replacement frequency: Once every 2–4 years.

Operating Conditions

• Water Temperature (min/max): 5° - 38°C
• Pressure (min/max): 2 – 4.5 bar
• Maximum TDS: 1500 ppm.

WARRANTY
2 YEARS
